R7c
The center of your universe

At the center of it all and always the focus of any studio or home theater is the critical tonal balance provided by the center channel.

r7c
overview

Introducing the all-new and exciting R7c center channel speaker—designed to deliver reference-level performance worthy of the flagship R-Series. Built on the same trickle-down technology from our award-winning S-Series, the R7c features the renowned DPC array and long-excursion woofers for astonishingly low distortion and controlled directivity down to 500Hz. This results in a full-range, high-fidelity experience that rivals even the best two-channel systems on the market, second only to our own S7c. As the heart of any home theater or studio, the R7c delivers the critical tonal balance and clarity required at the center, making it an essential component for immersive and lifelike audio.

Standard finishes

Grills are optional

Piano black

It's all in
the details

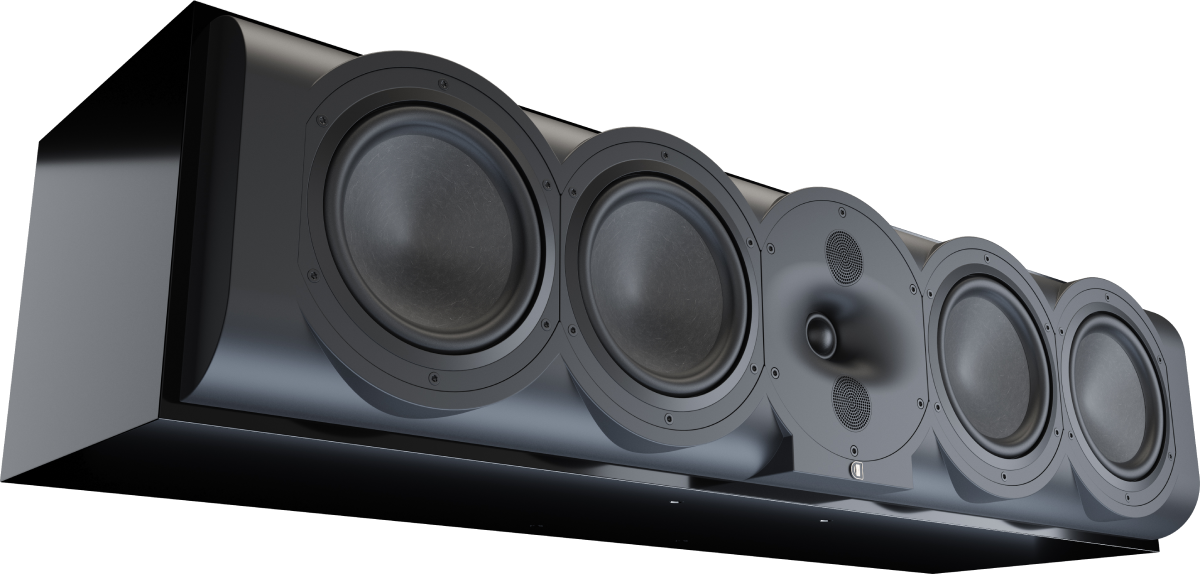

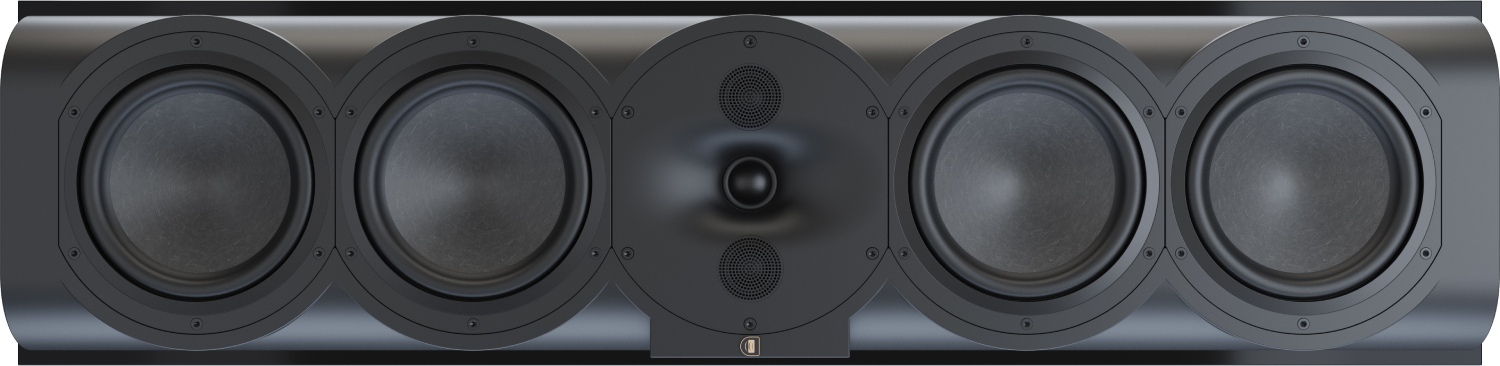

The R7c features our proprietary DPC-Array, which controls mid-to-high frequencies using three 26mm silk dome tweeters, ensuring excellent directivity control and timbre matching with all R-Series speakers. All transducers are developed from the ground up by our engineers, leveraging decades of research to culminate in this world-class design. We teamed up with companies in the USA and Sweden to bring modern material science to hi-fi. Utilizing advanced COMSOL acoustic modeling, our DPC array is the result of 18 months of painstaking simulations and prototyping. The result is one of the most technologically advanced loudspeakers available. This new tweeter/waveguide DPC-Array delivers exceptional accuracy, smoothness, and directivity control, enabling it to handle the critical vocal range and delicate treble with precision. All R-Series speakers share the same DPC-Array and benefit from our unique timbre matching technique across the entire series. Custom bass drivers made from HPF diaphragms are used for predictable low-frequency performance, making them ideally suited for multi-channel systems.

Technical specifications

See link for data sheet

Enclosure Alignmentacoustic suspension
Driver complimentDPC-Array:
26mm(3) Silk dome
Woofers:
165mm(4) HPF diaphragms
Sensitivity90.2dB / 2.83v / 1.0m
Impedance4Ω nominal / 3.0Ω min
Response Linearity 80 - 20kHz +/-2.0dB window
Frequency Response (-10dB) 36 - 32kHz
Typical In Room bass extension 29Hz
Dimensions (HxWxD) 230 x 920 x 300mm
9.1 x 36.2 x 11.8"
Weight36.8 kg (81.0 lbs.)
Recommended Amplifier Power 100 - 400W RMS
SPL capability @1m (100-20kHz)116.2dB peak
116.0dB peak <3% - 2nd, 3rd Harmonics
Available finishesPiano Gloss Black
A-series is only available in specific geographical markets. Please contact your local dealer or distributors.
